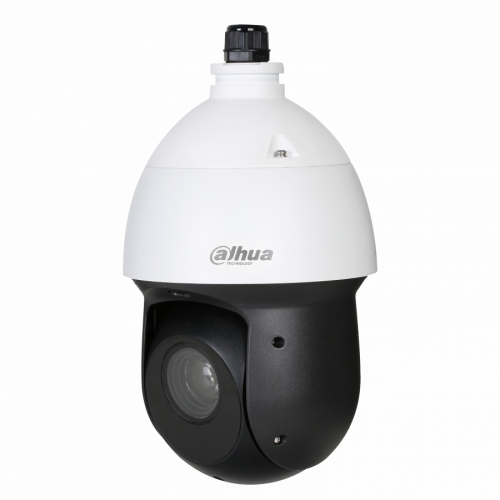

Dahua 4MP 25x Starlight IR 4G WizSense Network PTZ Camera
SD49425XB-HNR-G
Product info
Brand
Category
Description
Dahua® SD49425XB-HNR-G is a high-definition, fully rotating camera. It features powerful optical zoom for clear and detailed images. With efficient infrared night vision, it is suitable for various environments. It has intelligent tracking and facial recognition capabilities, enabling smart monitoring. Easy to use, it allows remote access and control. It is a reliable security surveillance solution.
Popular tags
PRODUCT DESCRIPTION
Dahua®SD49425XB-HNR-G is a high-definition, fully rotating camera. It features powerful optical zoom for clear and detailed images. With efficient infrared night vision, it is suitable for various environments. It has intelligent tracking and facial recognition capabilities, enabling smart monitoring. Easy to use, it allows remote access and control. It is a reliable security surveillance solution.
FEATURES
- 1/2.8" 4Megapixel CMOS
- Support 4G
- Powerful 25x optical zoom
- Starlight technology
- Max.25/30fps@4M
- Perimeter Protection
- Support PoE+
- IR distance up to 100m
- SMD PLUS
- IP66
SPECIFICATION
| General | |
|---|---|
| Model Number | 1/2.8" Starvis™ CMOS |
| Operating Temperature | -40~70℃ |
| Operating Humidity | ≦90% |
| Network | RJ-45 4G WIFI LTE FDD |
| ROM + RAM | 4GB + 1GB |
| Max.Resolution | 2560(H) × 1440(V) |
| Management Software | Smart PSS; DSS; DMSS |
| Power Supply | DC 12V/3A PoE+ (802.3at) |
| Power Consumption | 14.5W 22.5W(IR) |
| Mobile Phone | IOS/Android |
| WDR | 120dB |
| Flip | 180° |
| Protection | IP66 |
| Network | |
|---|---|
| Ethernet | RJ-45 (10/100Base-T) |
| 4G Network Type | LTE/WCDMA/GSM |
| 4G Frequency Band | LTE FDD: Band 1/2/3/4/7 WCDMA: Dual-band Band 1/2 GSM: 1800Hz/1900MHz |
| Protocol | IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Unicast / Multicast |
| User/Host | 19 |
| Storage | NAS; Local PC; Micro SD card (256G) |
| Browser | IE and newer versions Chrome 45 and earlier versions Firefox 52 and earlier versions Safari (no version restrictions) |
| Management Software | Smart PSS, DSS,DMSS |
| Mobile Phone | IOS, Android |
| Lens | |
|---|---|
| Focal Length | 4.8mm - 120mm |
| Max. Aperture | F1.6 ~ F4.0 |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Construction | |
|---|---|
| Dimension | Outside the wall:249*113*16mm; Whole product:249*113*28.6mm; |
| Dimensions | Φ160 mm × 295 mm (6.30" × 11.61") |
| Weight | 3000g(Net Weight) 4800g(Gross Weight) |
| PTZ | |
|---|---|
| Pan/Title Range | Pan: 0°~360° (endless) Tile: -15°~90° (auto flip 180°) |
| Manual Control Speed | Pan: 0.1°–200°/s Tilt: 0.1°–120°/s |
| Preset Speed | Pan: 240°/s Tilt: 200°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Support |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Protocol | DH-SD Pelco-P/D (auto recognition) |
