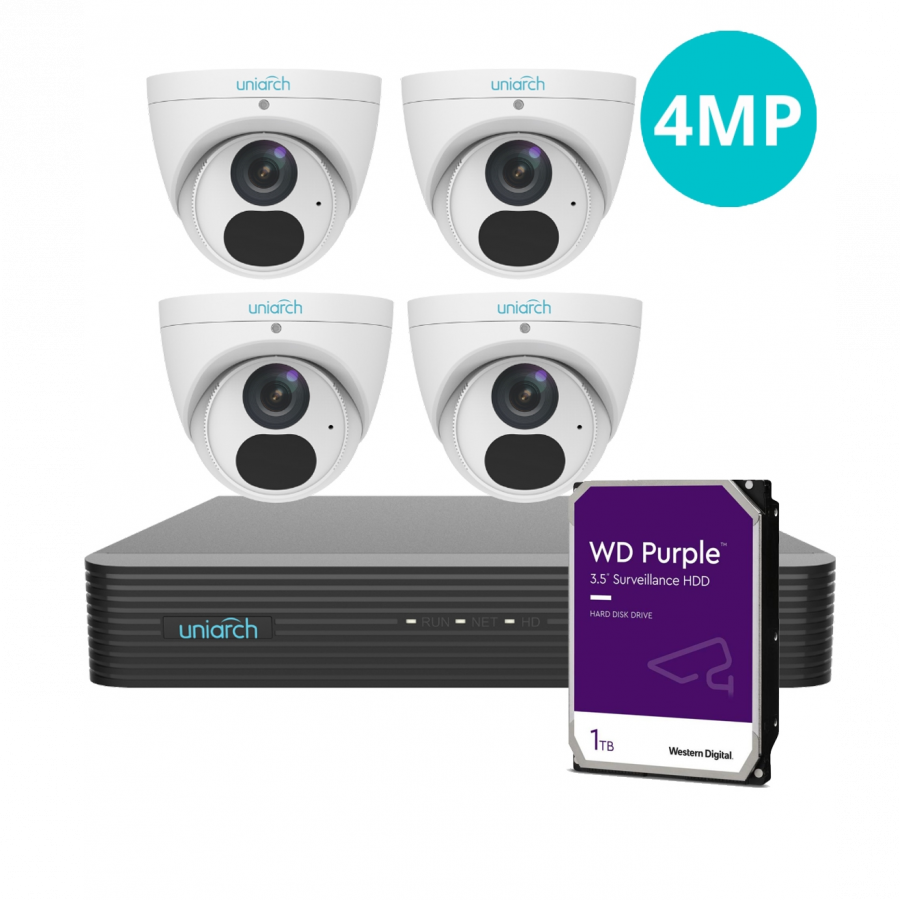

Unv Uniarch 4MP Kit-UNA-4041W 4CH NVR System with 4 Cameras & 1TB HDD
Kit-UNA-4041W
Product info
Brand
Category
Description
The Uniview Kit-UNA-4041W is a reliable 4-channel 1080P NVR security system that comes with 4 high-definition cameras. This comprehensive surveillance solution delivers clear image quality, user-friendly features, and dependable performance. The NVR supports 1080P resolution recording and provides ample storage for footage retention. The included cameras offer HD clarity, night vision, and weatherproof design for indoor and outdoor use. With features like motion detection, remote access via mobile app, and easy setup, this system enables effective monitoring and convenient management of your security. Trust Uniview's proven technology and expertise to protect your property with an affordable and efficient surveillance solution.
Popular tags

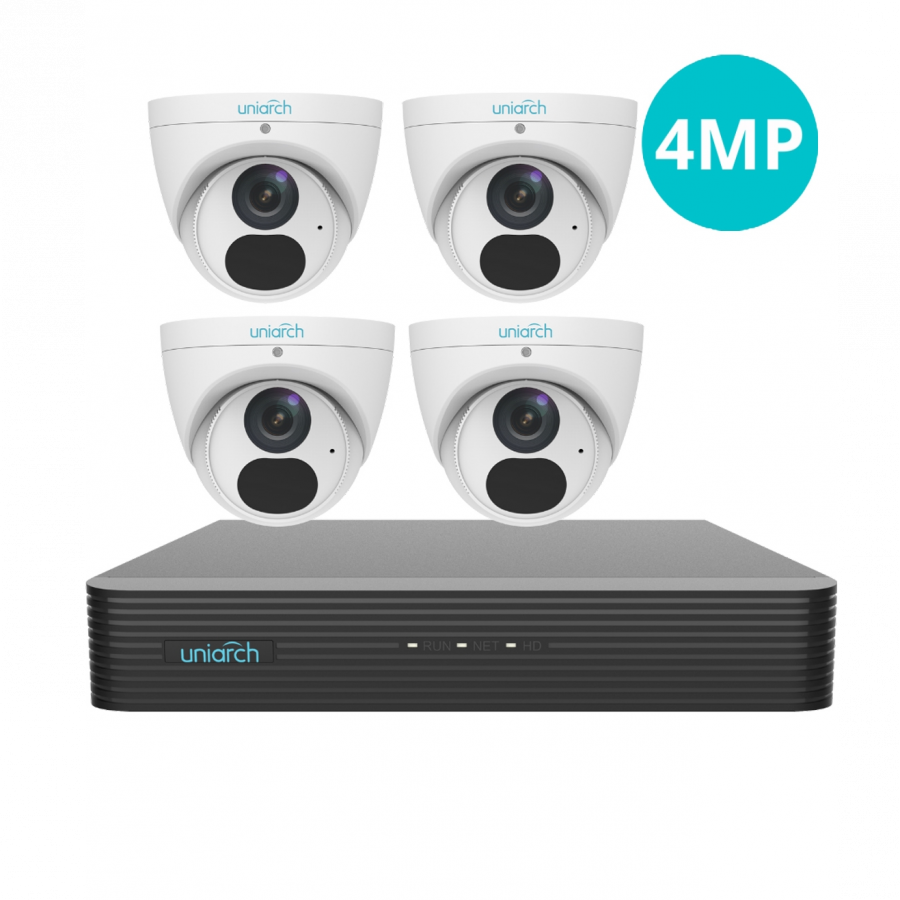

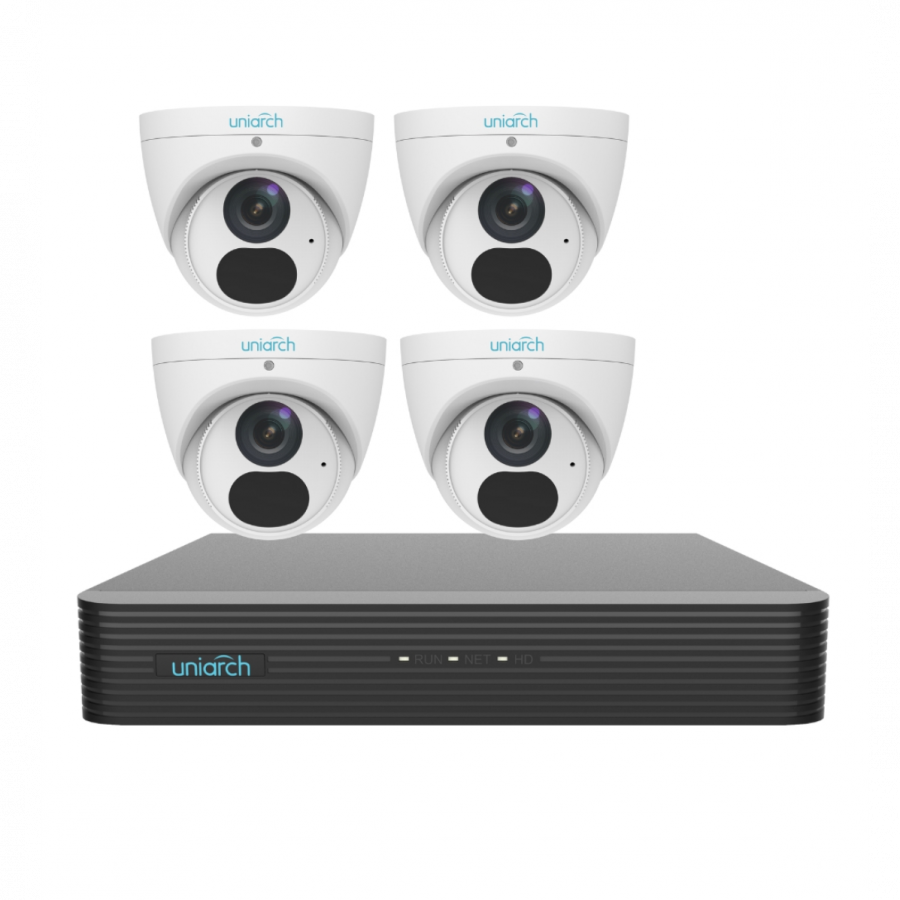

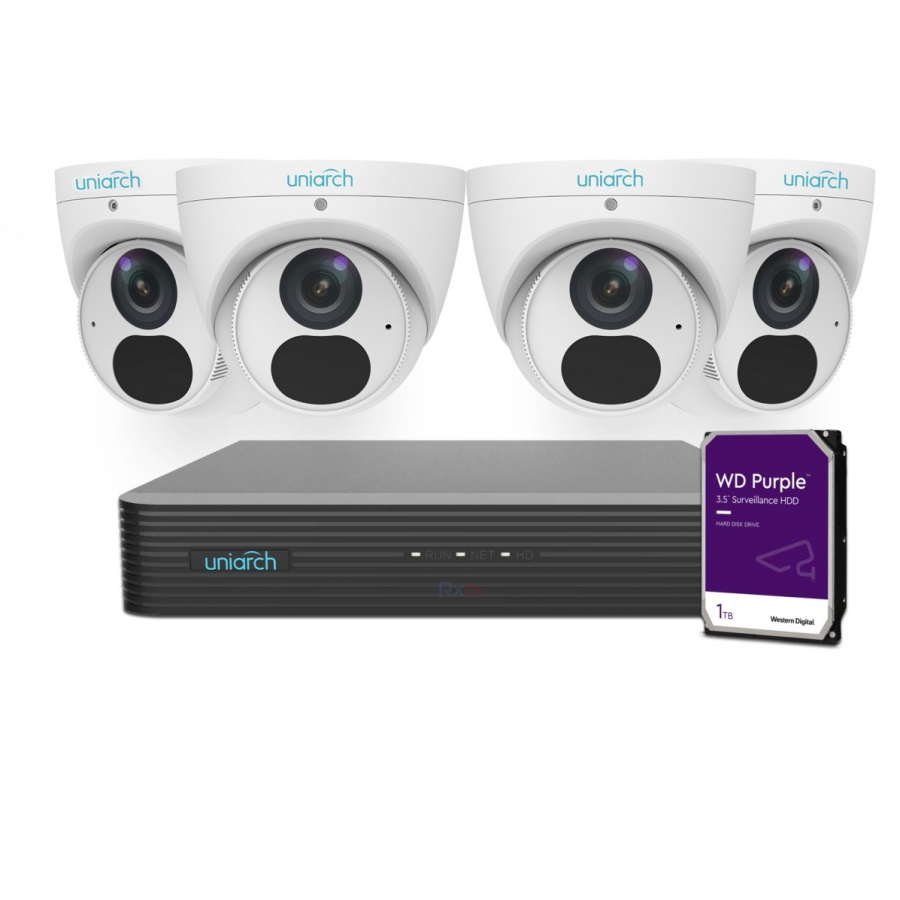

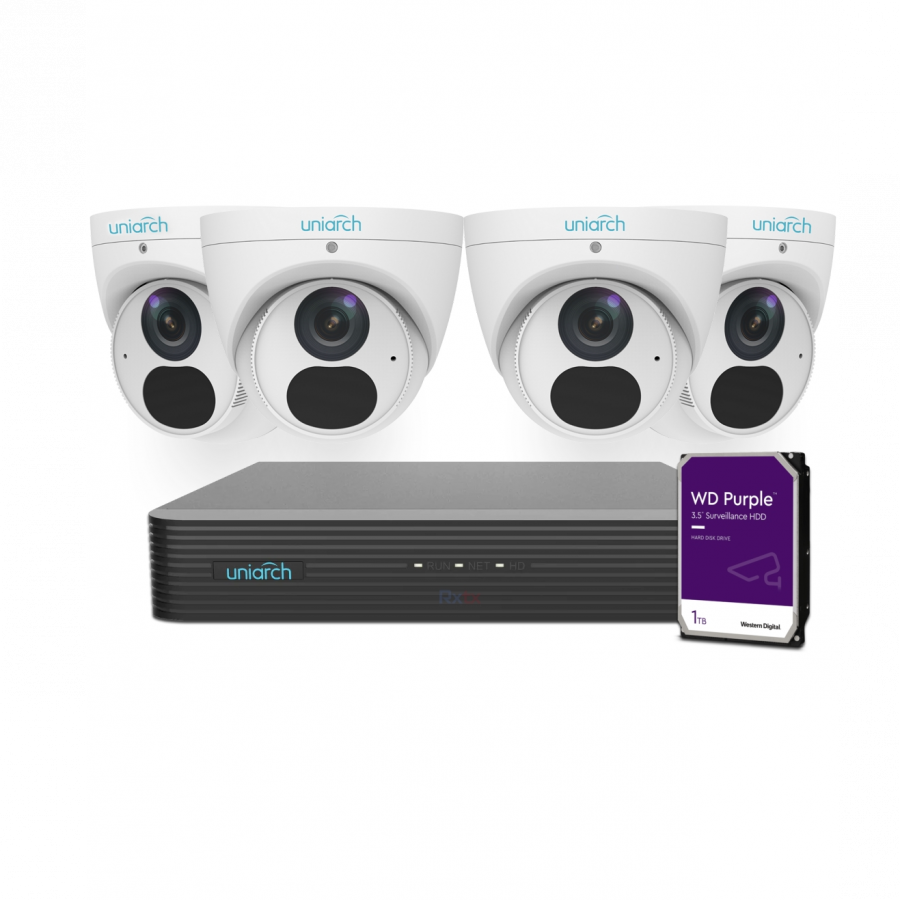

Introducing the Uniview® Kit-UNA-4041W, a reliable 4-channel 1080P NVR security system that comes complete with 4 high-definition cameras. This comprehensive surveillance solution, brought to you by IOT tech, delivers clear image quality, user-friendly features, and dependable protection for your property.

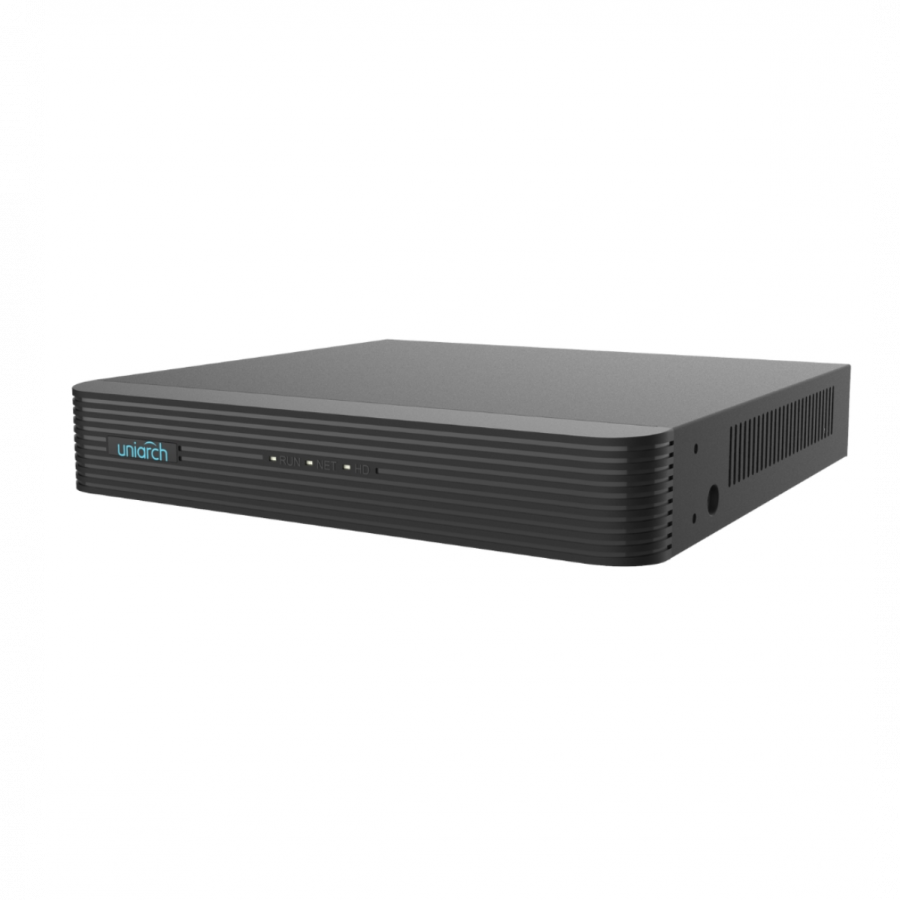

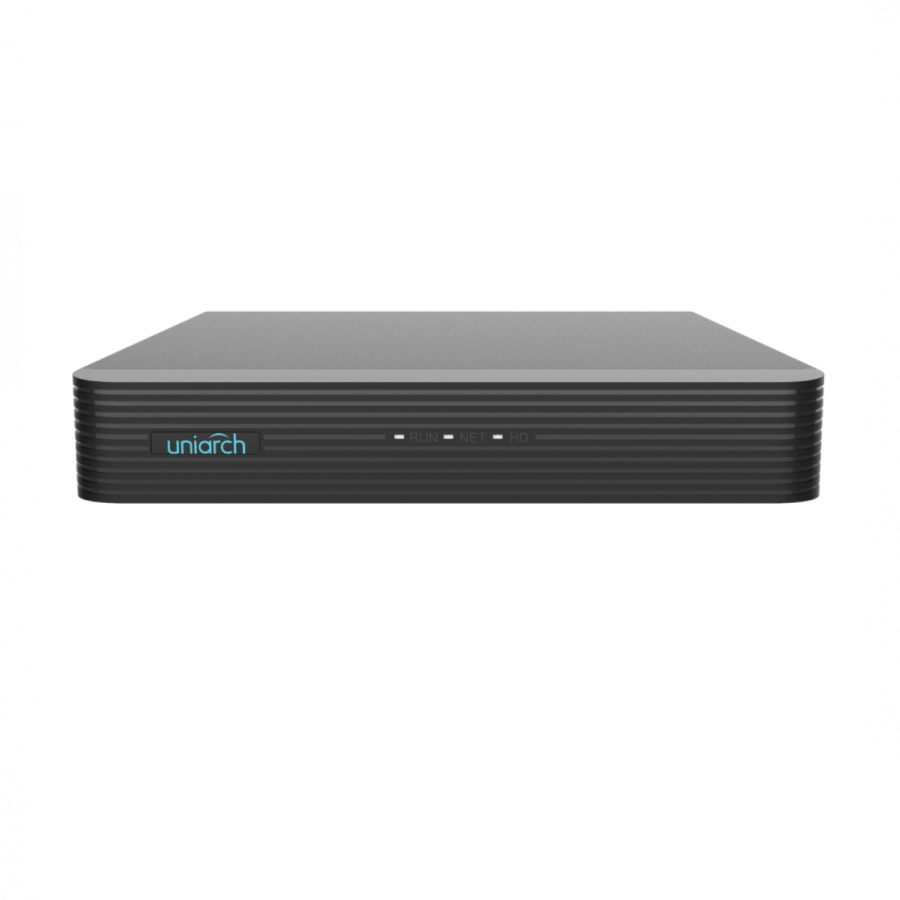

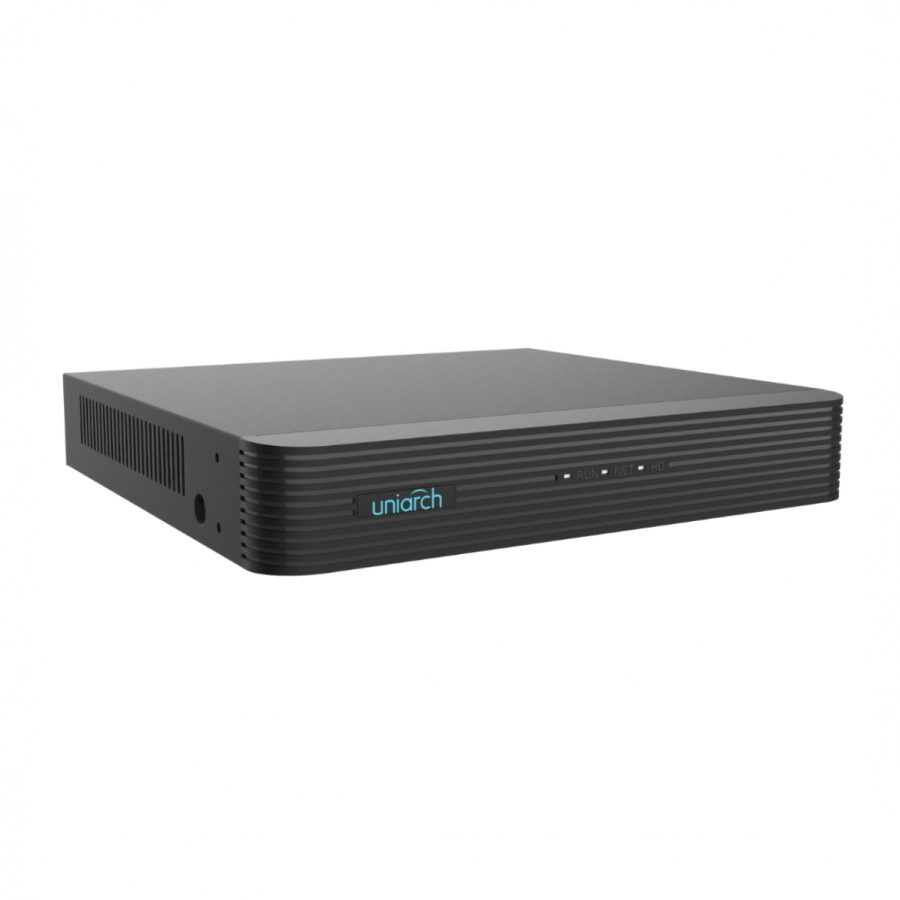

The core of the system is the 4-channel NVR, capable of recording and managing 1080P resolution video streams. With ample storage capacity, you can retain footage for a sufficient period, ensuring you have the evidence you need when required. The intuitive interface makes it easy to navigate through recorded events and manage system settings.

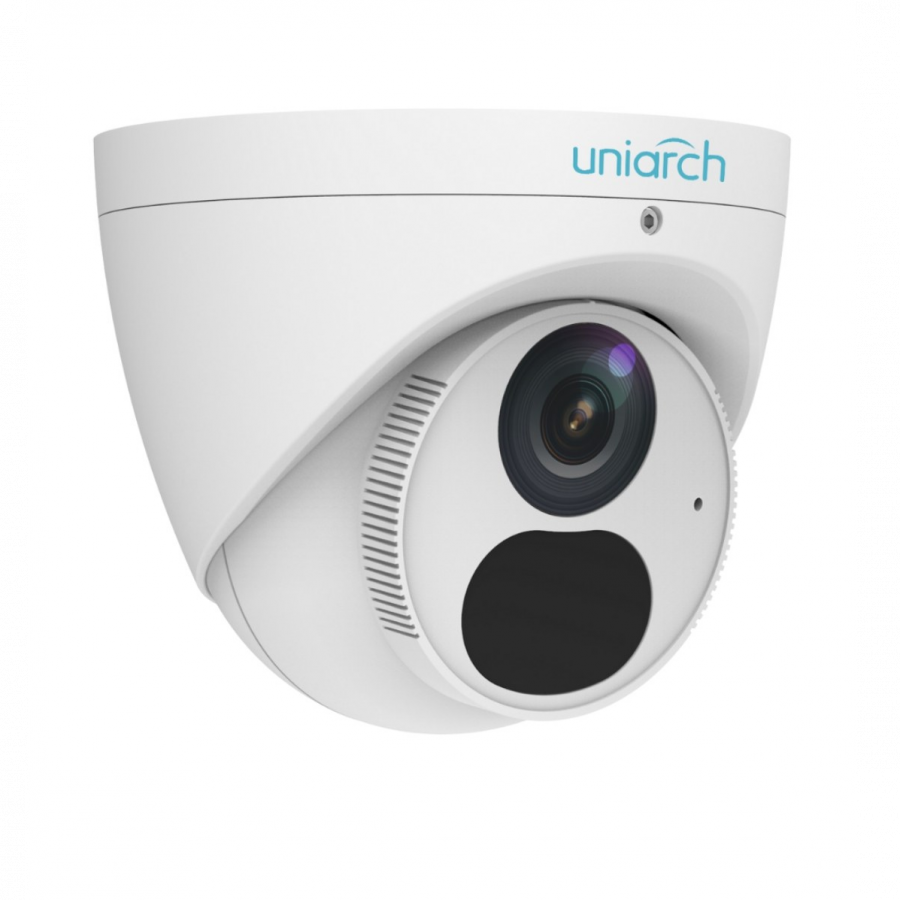

The Kit-UNA-4041W includes 4 high-definition cameras that provide clear and detailed video footage. These cameras are equipped with night vision capabilities, allowing for effective monitoring even in low-light conditions. The weatherproof design ensures reliable operation in both indoor and outdoor environments.

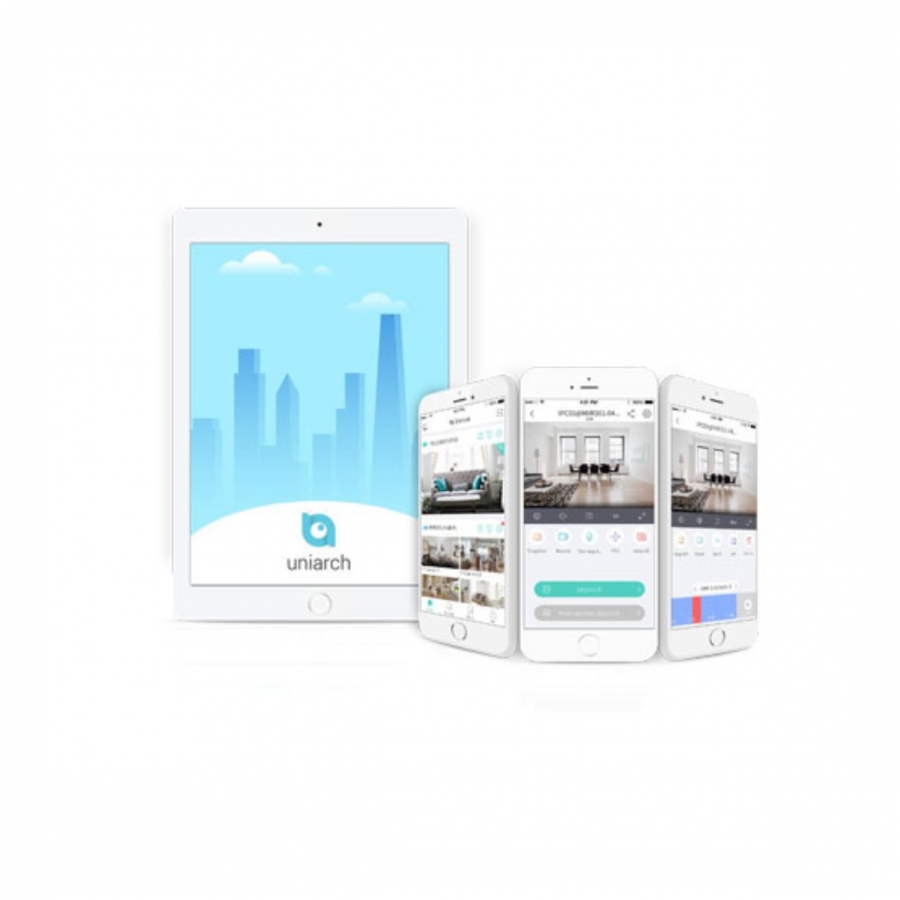

This user-friendly system features motion detection, which intelligently identifies and alerts you to potential threats. Remote access via the mobile app allows you to view live feeds, manage settings, and receive notifications from anywhere, giving you peace of mind even when you're away from your property.
Experience affordable and efficient surveillance with the Uniview® Kit-UNA-4041W, exclusively available through IOT tech. With its proven technology, user-friendly features, and easy setup, this system provides a reliable and accessible solution for your security needs.
FEATURES
- High quality image with 4MP, 1/2.7'' CMOS sensor
- 6MP(3072*2048)@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps; 2MP(1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
SPECIFICATION
| Camera | |
|---|---|
| Sensor | 1/2.7", 6.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N | >56dB |
| WDR | 120dB |
| Lens | |
|---|---|
| Lens Type | 2.8mm @1.6, Fixed-focal |
| Lens Mount | M12 |
| Angle of View (H) | 112.9° |
| Angle of View (V) | 59.1° |
| Angle of View (O) | 121.2° |
| Illuminator | |
|---|---|
| IR Range | Up to 30m (98 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| General | |
|---|---|
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (L × W × H) | Φ111 x 95mm (Φ4.4” x 3.7”) |
| Weight | 0.35kg (0.77lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F) Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F) Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
| Ingress Protection | IP67 |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Uniarch Client Uniarch APP |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Events | |
|---|---|
| Intelligent Detection | Intrusion detection (based on human) |
| Basic Detection | Motion detection, tampering alarm, audio detection |
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication |
