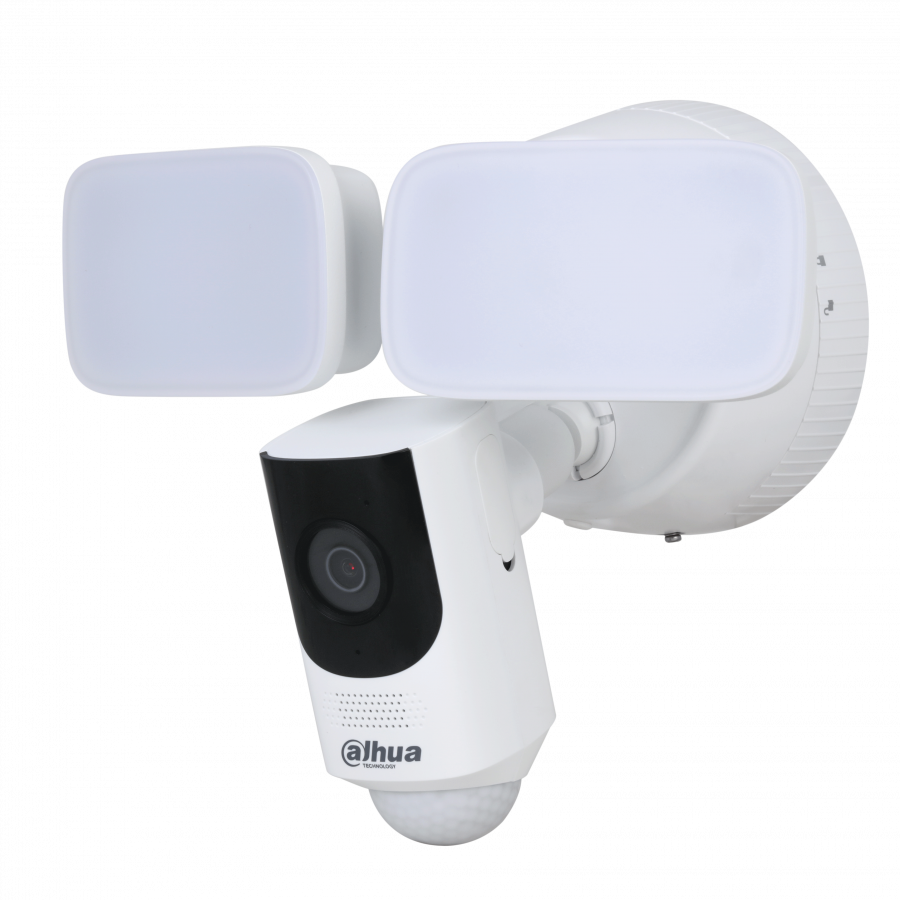

DAHUA 4MP Fixed-focal Floodlight Network Camera
DH-IPC-WL46A
Product info
Brand
Category
Description
The Dahua DH-IPC-WL46A is a WiFi PT 6 Bullet Network Camera offering wireless surveillance with remote pan/tilt capabilities. With flexible installation and mobile app integration, IOT tech recommends this camera for convenient security monitoring.
Popular tags
PRODUCT DESCRIPTION
IOT tech is excited to introduce the DAHUA® DH-IPC-WL46A, a WiFi PT 6 Bullet Network Camera designed for flexible and convenient wireless surveillance with remote pan/tilt capabilities.
Featuring WiFi 6 connectivity, this camera offers stable and high-speed wireless transmission, ensuring smooth video streaming and responsive control. Its pan/tilt functionality allows you to remotely adjust the camera's viewing angle, providing comprehensive coverage of your desired areas.
The DH-IPC-WL46A is designed for easy installation and integration with mobile apps, enabling convenient remote monitoring and control from your smartphone or tablet. Whether you're at home or on the go, you can access live video feeds, adjust camera settings, and receive real-time alerts for enhanced security.
Designed for versatility, this bullet camera is suitable for both indoor and outdoor environments with an IP67 weather-resistant and IK10 vandal-resistant housing. It also supports advanced features like Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) for improved image quality in challenging lighting conditions.
Upgrade your security infrastructure with the DAHUA® DH-IPC-WL46A and experience the convenience of wireless surveillance backed by IOT tech's expertise and commitment to quality. Enjoy flexible installation, remote pan/tilt control, and mobile app integration for enhanced monitoring capabilities.
FEATURES
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@25 fps/30 fps
- H.265 codec, high compression rate, ultra-low bit rate.
- SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Built-in microphone and speaker for real-time communication.
- Active alarm with built-in 110 dB Siren.
- The built-in dual floodlights can switch between warm and cool color temperature and have 4 floodlights modes.
- Detects humans, vehicles and animals to reduce the occurrence of false alarms.
- SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Dual-band 2.4 GHz and 5 GHz WiFi options, IEEE802.11a/b/g/n/ac.
- Supports max. 256 G Micro SD card and NVR storage.
- 100–240 VAC power supply, easy for installation.
- IP65 Protection.
SPECIFICATION
| Camera | |
|---|---|
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.6 (Color,30 IRE)0.0005 lux@F1.6 (B/W,30 IRE)0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 10 m (32.81 ft) (IR); 30 m (98.43 ft) (Floodlight) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED); 2 (Floodlight, color can be switched between warm and cool) |
| Floodlight Brightness | 1500-2400 lm |
| Floodlight Color Temperature | 3000K±200K (warm);6000K±300K (cool) |
| Floodlight Modes | Motion ActivationManualSchedulePIR Activation |
| PIR Sensor Distance | 10 m (the height of the device is 3 m, placed at an angle of 30° from the horizontal) |
| PIR Detection Range | 270° |
| Lens | |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 98°; V: 55°; D: 115° |
| Iris Control | Fixed |
| Close Focus Distance | 1.0 m (3.28 ft) |
| Audio | |
|---|---|
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression G.711a; G.711Mu; G.726; PCM | |
| Video | |
|---|---|
| Video Compression H.264B; | H.264; H.264H; H.265; MJPEG |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream:2560 × 1440@(1–25 fps)2560 × 1440@(1–30 fps)Sub stream 1:704 × 576@(1–25 fps)704 × 480@(1–30 fps)Sub stream 2:640 × 480@(1 fps–25 fps)640 × 480@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 1M (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 32 kbps–8192 kbps; H265: 32 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Privacy Masking | Yes |
| Network | |
|---|---|
| Wi-Fi | IEEE802.11a/b/g/n/ac 2.4–2.4835GHz & 5.18–5.85GHz |
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
