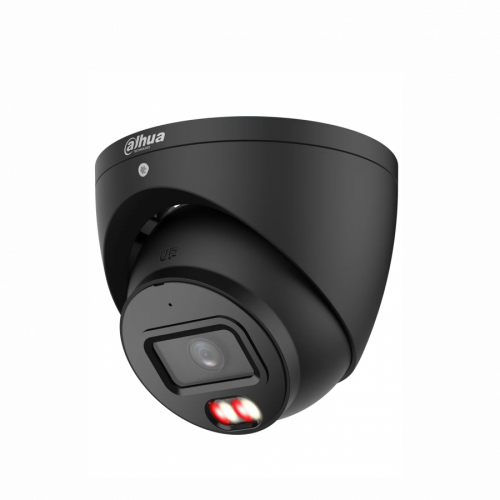

Dahua 8 MP Smart Dual Light Active Deterrence Fixed-focal Eyeball WizSense Network Camera
DH-IPC-HDW3849H-AS-PV-BL
Product info
Brand
Category
Description
The DAHUA IPC-HDW3849H-AS-PV-BL is a professional-grade 4K Ultra HD AI network camera designed for advanced surveillance applications. With its 4K Ultra HD resolution and advanced AI features, it delivers exceptional image quality and accurate event detection. Suitable for indoor and outdoor installations with its weatherproof and vandal-resistant housing. Experience reliable performance and convenient monitoring with remote access through the Dahua mobile app.
Popular tags
PRODUCT DESCRIPTION
Launched by Dahua® Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
IOT tech recommends that the DAHUA® IPC-HDW3849H-AS-PV-BL 4K Ultra HD AI network camera for professional surveillance applications. With its superior image quality, advanced AI capabilities, and robust construction, it ensures comprehensive security for various environments. Benefit from accurate event detection, flexible viewing angles, and convenient remote access for effective monitoring and management.
FEATURES
- 8MP 1/2.8″ CMOS image sensor, low luminance, and high definition image
- Outputs max. 8MP (3840 × 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30m
- ROI, SMART H.264+ / H.265+, AI H.264 / H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; 1-ch speaker; support two-way talk
- 12VDC / PoE power supply
- IP67 protection
- Sound and light alarm (red and blue lights)
- SMD 4.0
- One-tap arming/disarming through alarm input
SPECIFICATION
| Features and Performance | |
|---|---|
| Working Humidity | 5~90% |
| Working Temperature | -5~45℃ |
| Static Consumption | <1.5W |
| Working Voltage | AC 100~240V 50/60Hz |
| Wireless Distance | 200M (Open Field) |
| Camera | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) 30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED) 1 (warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Camera | |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Field of View | 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125° 3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft) 3.6 mm: 2.8 m (6.23 ft) |
| Environment | |
|---|---|
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection Grade | IP67 |
