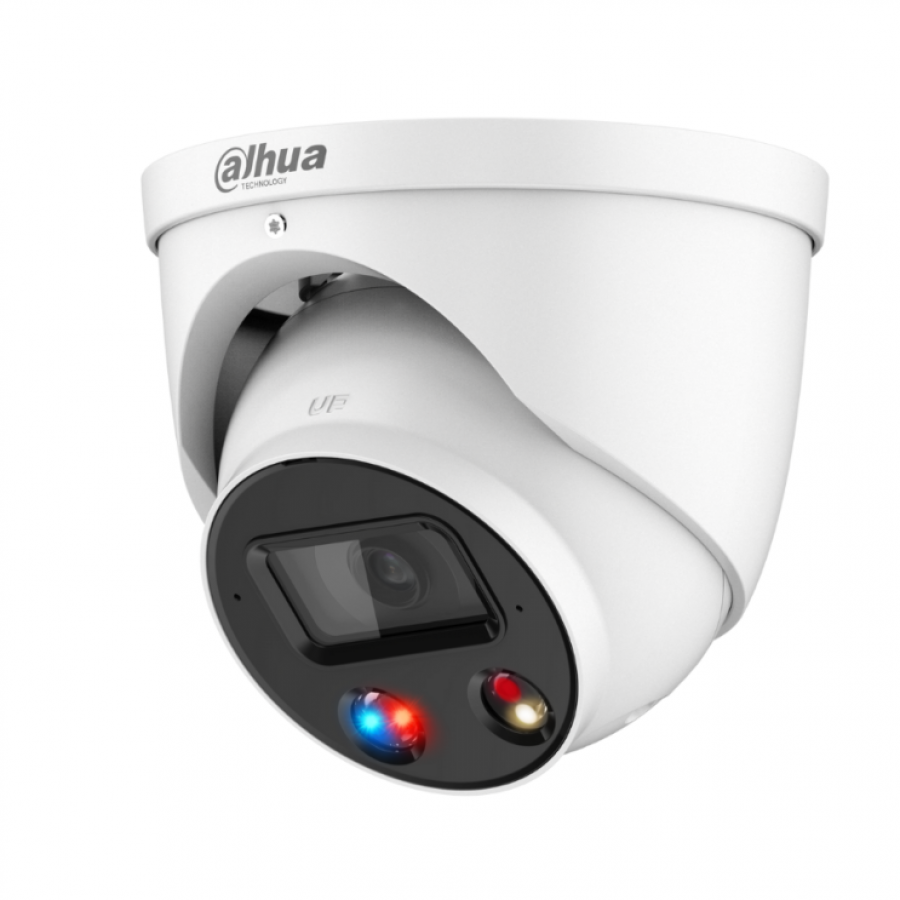

Dahua 6 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
DH-IPC-HDW3649H-AS-PV-ANZ
Product info
Brand
Category
Description
The Dahua DH-IPC-HDW3649H-AS-PV-ANZ is a 6MP AI ColorVu Starlight Bullet Network Camera delivering exceptional 24/7 surveillance. With advanced AI ColorVu technology and starlight low-light capabilities, IOT tech recommends this camera for clear day/night monitoring.
Popular tags
PRODUCT DESCRIPTION
IOT tech is excited to introduce the DAHUA® DH-IPC-HDW3649H-AS-PV-ANZ, a cutting-edge 6MP AI ColorVu Starlight Bullet Network Camera designed for exceptional 24/7 surveillance capabilities.
Featuring a 1/1.8" 6MP progressive scan STARVIS™ CMOS image sensor, this camera delivers high-resolution video footage with stunning clarity and detail. Its advanced AI ColorVu technology enables vivid color imaging even in low-light conditions, providing clear and accurate color reproduction without the need for traditional infrared illumination.
The DH-IPC-HDW3649H-AS-PV-ANZ is equipped with a motorized lens, allowing remote adjustment of the viewing angle and focus for optimal coverage and image quality. This flexibility simplifies installation and ensures seamless monitoring of your desired areas.
Designed for versatility, this bullet camera is suitable for both indoor and outdoor environments with an IP67 weather-resistant and IK10 vandal-resistant housing. It also supports advanced features like Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (DNR) for improved image quality in challenging lighting conditions.
Upgrade your security infrastructure with the DAHUA® DH-IPC-HDW3649H-AS-PV-ANZ and experience exceptional 24/7 surveillance backed by IOT tech's expertise and commitment to quality. Enjoy clear day/night monitoring with vivid color imaging and starlight low-light performance.
FEATURES
- · 6-MP 1/2.7" CMOS image sensor, low luminance, and high definitionimage.
- Outputs max. 6 MP (3200 × 1800) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 30 mand warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicableto various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicableto various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support theclassification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scenechanging, audio detection, no SD card, SD card full, SD card error,network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SDcard; buit-in dual MICs; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 4.0.
- One press arming/disarming through alarm input.
SPECIFICATION
| Camera | |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3200 (H) × 1800 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE)0.0003 lux@F1.0 (B/W, 30 IRE)0 lux (illuminator on) |
| S/N Ratio | ﹥ 56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR)30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED)1 (warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° |
| Lens | |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Field of View | 2.8 mm: H: 97°; V: 70°; D: 128°3.6 mm: H: 78°; V: 58°; D: 102° |
| Iris Type | Fixed |
| Intelligent | |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification andaccurate detection of vehicle and human) |
| SMD 4.0 | Less false alarm, longer detection distance |
| Smart Search | Work together with Smart NVR to perform refineintelligent search, event extraction and merging to eventvideos. |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targetsthat users are interested in from SMD events |
| AI SSA | Adopt deep learning algorithms to adjust the parametersof the image to suit the conditions. |
| Video | |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supportedby the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3200 × 1800@(1 fps–25/30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1fps–30 fps)Third stream: 1920 × 1080@(1 fps–25/30 fps)*The values above are the max. frame rates of eachstream; for multiple streams, the values will be subjectedto the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 6M (3200 × 1800); 5M (2880 × 1620); 4M (2688 ×1520/2560 × 1440); 3M (2304×1296/2048 × 1536);1080P (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480);CIF (352×288/352×240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32kbps–8192 kbpsH.265:12kbps–8192 kbp |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regionalcustom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection OFF/ON (4 areas) | |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
