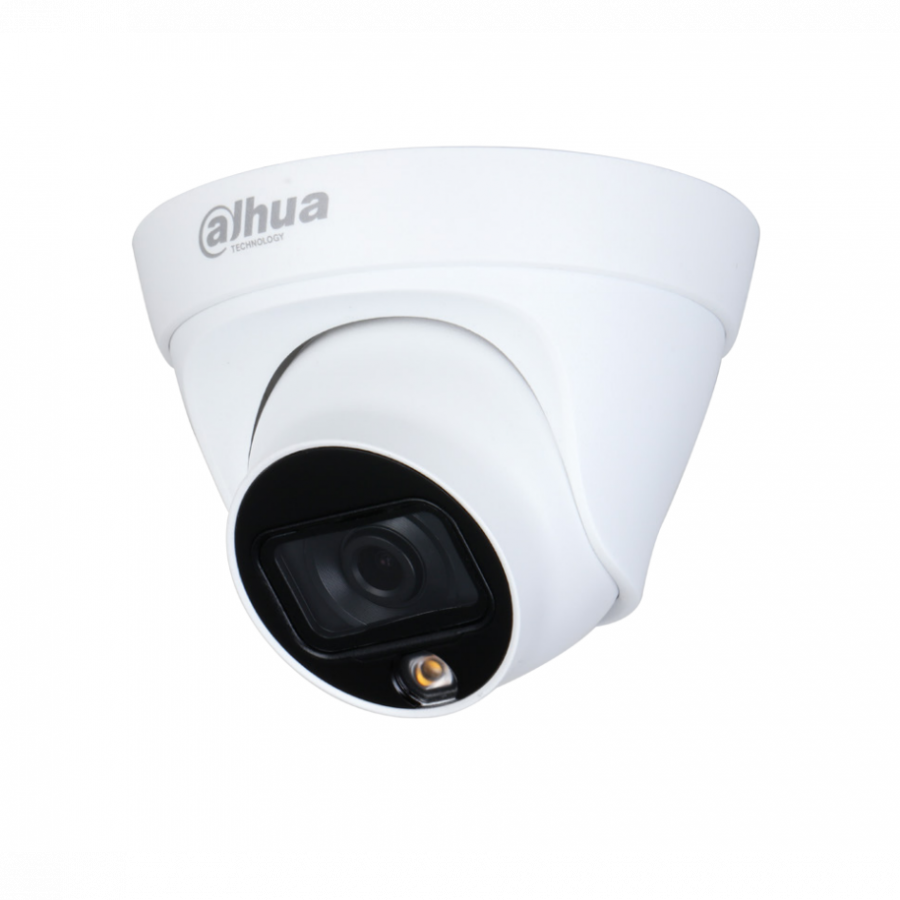

Dahua 2MP Lite Full-color Fixed-focal Eyeball Network Camera DH-IPC-HDW1239T1-LED-S5
DH-IPC-HDW1239T1P-LED-0280B-S4
Product info
Brand
Category
Description
The Dahua DH-IPC-HDW1239T1P-LED-0280B-S4 is a 2MP Full-color Starlight Bullet Network Camera delivering exceptional imaging capabilities. With advanced low-light performance and full-color night vision, IOT tech recommends this camera for reliable 24/7 surveillance.
Popular tags
PRODUCT DESCRIPTION
IOT tech is excited to introduce the DAHUA® DH-IPC-HDW1239T1P-LED-0280B-S4, a high-performance 2MP Full-color Starlight Bullet Network Camera designed for exceptional imaging and reliable 24/7 surveillance.
Featuring a 1/2.8" 2MP STARVIS™ CMOS image sensor, this camera delivers impressive image quality with vivid colors and detailed clarity, even in low-light conditions. Its advanced Starlight technology enables full-color night vision, capturing true-to-life footage without the need for traditional infrared illumination.
The DH-IPC-HDW1239T1P-LED-0280B-S4 is equipped with a 2.8mm fixed lens, offering a wide viewing angle of 103° to cover large areas effectively. This fixed-focal design simplifies installation and reduces maintenance requirements, making it an ideal choice for various applications.
Designed for versatility, this bullet camera is suitable for both indoor and outdoor environments with an IP67 weatherproof and IK10 vandal-resistant housing. It also supports advanced features like Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (DNR) for improved image quality in challenging lighting conditions.
Upgrade your security infrastructure with the DAHUA® DH-IPC-HDW1239T1P-LED-0280B-S4 and experience exceptional full-color imaging and reliable 24/7 surveillance backed by IOT tech's expertise and commitment to quality.
FEATURES
- 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
- Outputs max. 2MP (1920 × 1080) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in LEDs, max LED distance: 15 m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
- 12V DC/PoE power support
- IP67 protection
SPECIFICATION
| Camera | |
|---|---|
| Image Sensor | 1/2.7" 2Megapixel progressive CMOS |
| Effective Pixels | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| LED Distance | 2.8 mm: 10 m (32.8ft)3.6 mm: 15 m (49.2ft) |
| LED On/Off Control | Auto/Manual |
| LEDs Number | 1 |
| Pan/Tilt/Rotation Range | Horizontal: 0°–355°Vertical: 0°–78°Rotation: 0°–360° |
| Lens | |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm3.6 mm |
| Max. Aperture | 2.8 mm: F1.63.6 mm: F1.6 |
| Field of View | 2.8 mm: Pan 110° × Tilt 59° × Diagonal 132°3.6 mm: Pan 91° × Tilt 48° × Diagonal 109° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 0.6 m (2.0 ft)3.6 mm: 1.1 m (3.6 ft) |
| Network | |
|---|---|
| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;SMTP; FTP; DHCP; DNS; NTP; DDNS ;Multicast |
| Interoperability | ONVIF (Profile S); CGI; P2P; Genetec |
| User/Host | 20 |
| Edge Storage | FTP; Dahua Cloud |
| Browser | IEChromeFirefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Video | |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main Stream:1920 × 1080 (1 fps–25/30 fps)Sub stream:704 × 576 (1 fps–25 fps)704 × 480 (1 fps–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF(352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–6144 KbpsH.265: 12 Kbps–6400 Kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto/natural/street lamp/outdoor/manual/regionalcustom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Light | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080presolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
